CATEGORY
TANKERDimensions
54.50 x 10.50 x 05.10 meters
Machinery
2 x 659 HP YANMAR Marine 6AYM-WET (M-rating) @ 1,900 rpm
Build
New Build
Status
12 Months Lead Time
Description
Download Technical Drawing
Download Drawing 1

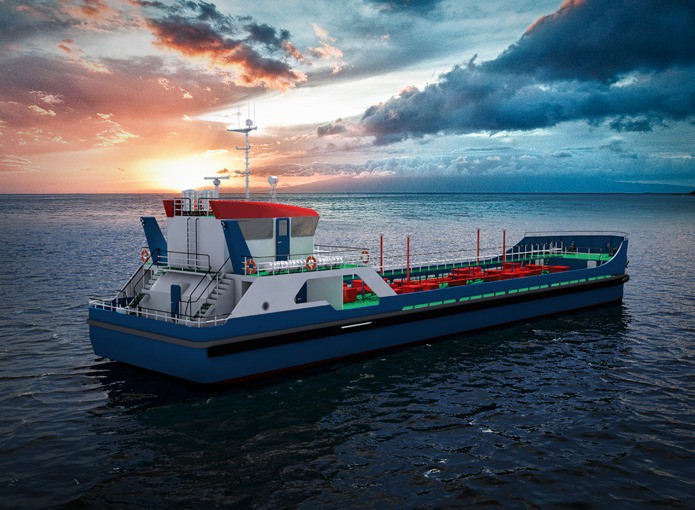

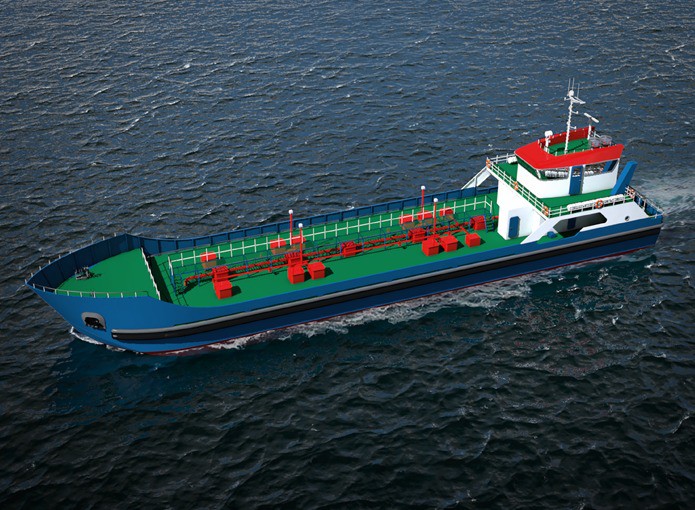

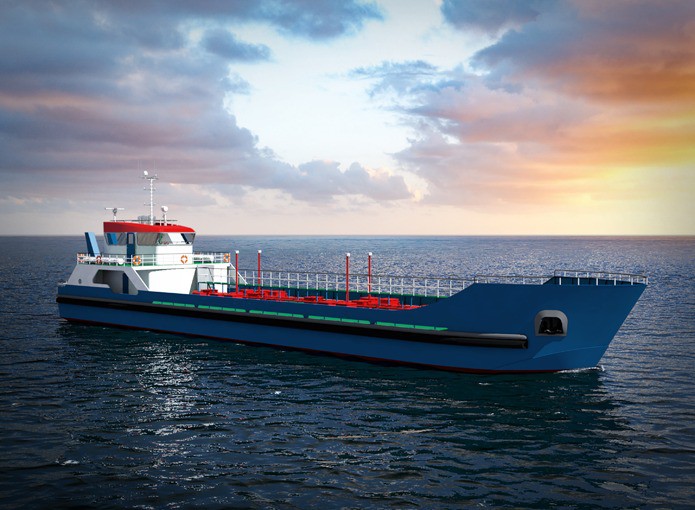

| Vessel Code | : SPOB 1000 KL |
| Structure | : Double Bottom, Double Hull |
| Build Year | : New Build |
| Length Over All (LOA) | : 54.50 meters |
| Breadth | : 10.50 meters |
| Depth | : 5.10 meters |
| Design Draft | : 4.00 meters |
| Design Speed | : approx. 8 Knots |
| Fuel Consumption | : approx. 261.5 Liters/ hour |
| Accommodation | : 12 person |
| Tank capacity | |
| Cargo Tank Capacity | : approx. 1,140 m3 |
| Fuel Oil Tank | : approx. 72 m3 |
| Fresh Water Tank | : approx. 73 m3 |
| Slope Tank | : approx. 26 m3 |
| Machinery & Deck Equipment | |
| Main Engine | : 2 x 659 HP YANMAR Marine 6AYM-WET (M-rating) @ 1,900 rpm |
| Gearbox | : 2 x YXH-240L |
| Generator Set | : 2 x 50 kVA/ 49.4 kW YANMAR Marine YTG65TLV-OM @ 1,500 rpm |
| Cargo Oil Tank Pump | : 2 x Cap. 125 m3/hr, explosion-proof, electric motor, centrifugal pump |
| GS/ Fire Pump | : 1 x Cap. 25 m3/hr, electric motor, centrifugal pump |
| Daily Fuel Oil Transfer Pump | : 1 x Cap. 1 m3/hr. electric motor, gear pump |
| Standby F.O. Transfer Pump | : 1 x Manual, semi-rotary hand pump (K3) |
| Lubricating Oil Pump | : 1 x Manual, semi-rotary hand pump (K3) |
| Bilge Pump | : 1 x Cap. 2 m3/hr, electric motor, gear pump |
| OWS | : 1 x Cap. 0.5 m3/hr |
| Anchor | : 2 x 300 kg |
| Anchor Winch | : 2 set |
| Safety Equipment | |
| Landing Buoy | : 8 pcs |
| Life Raft | : 2 sets Cap. 10 person |
| Life Jacket | : 13 pcs with whistle |
| Smoke Signal | : 4 pcs |
| Heat Detector | : 2 pcs |
| Parachute Signal | : 2 pcs |
| Red Hand Flare | : 3 pcs |
| Bell | : 4 pcs |
| Siren | : 1 pcs |
| Fire Extinguisher | : 7 tubes 4.5 kg dry chemical type |
| : 4 tubes 4.5 kg foam type | |
| Fire Hydrant Valve | : 2 sets |
| Fire Hose | : 3 sets |
| Fireman's Axe | : 1 pc |
| Fireman's Outfit | : 1 set |
| Fire Blanket | : 1 pc |
| First Aid Box | : 2 sets |
| Signal Flag | : 1 set |
| Navigation Equipment | |
| Magnetic Compass | : 1 unit 6' |
| Radar | : 1 set |
| Binoculars | : 1 unit |
| Wind Shield/ Glass Fog | : 1 unit |
| Search Light | : 1 unit 1,000 Watt |
| Clinometers | : 1 unit |
| GPS | : 1 set |
| Echo Sounder | : 1 set |
| Navigation Light | : 1 set |
| Navigation Flag | : 1 set |
| Nationality Flag | : 1 unit |
| Communication Equipment | |
| Radio SSB | : 1 unit ICOM M710 |
| Radio VHF | : 1 unit ICOM M323 |
| Intercom | : 3 set |
| handheld Transceiver | : 3 units |
| Accommodation | |
| Air Conditioner | : 2 unit 3/4 PK |
| : 5 units 1 PK | |
| : 4 units 1 1/2 PK | |
| Television | : 1 unit |
| Bed Set | : 12 set |
| Refrigerator | : 1 Fridge with 2 doors |
| Kitchenette | : 1 set |
| Washing Machine | : 1 unit |
| Plate Thickness | |
| Keel | : 12 mm |
| Bottom | : 10 mm |
| Double Bottom | : 8 mm |
| Hull | : 10 mm |
| Double Hull | : 8 mm |
| Deck | : 8 mm |
| Super Structure | : 6 mm |
