CATEGORY
FERRYDimensions
39.50 x 10.00 x 03.00
Machinery
2 x 400 BHP CATERPILLAR
Build
New Build
Status
10 months lead time
Description
Download Technical Drawing
Download Drawing 1

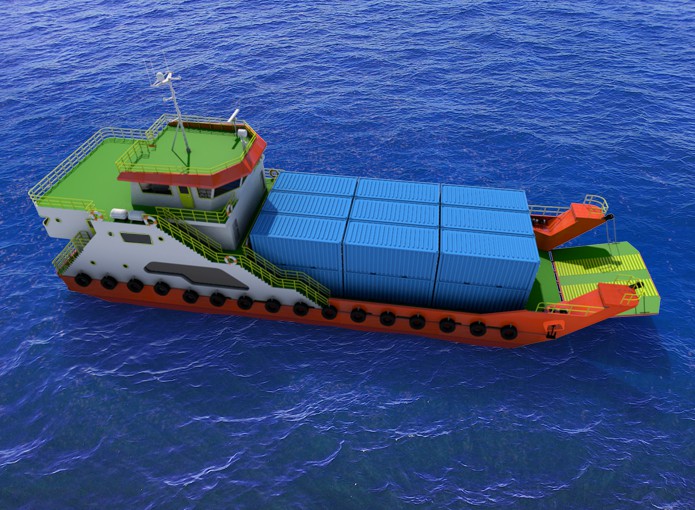

| Vessel Name | : | LCT Lady Primus |
| Flag | : | Indonesia |
| Structure | : | Double bottom, Single hull |
| Classification | : | BKI |
| Build | : | New Build |
| Speed | : | abt. 8 knots |
| Fuel Consumption | : | abt. 156 L/hr |
| Dimension | ||
| Length Over All (LOA) | : | 39.50 meters |
| Breadth | : | 10.00 meters |
| Depth | : | 3.00 meters |
| Draft Design | : | 2.30 meters |
| Capacity | ||
| Gross Tonage | : | abt. 400 GT |
| Fresh Water Capacity | : |
abt. 80 m3 |
| Fuel Oil Capacity | : | abt. 30 m3 |
| Accommodation | : | 18 crew + 130 person |
| Machinery | ||
| Main Engine | : | 2 x 400 BHP CATERPILLAR 3406C DITA-HE @ 1,800 rpm |
| Gear Box | : | 2 x HANGZHOU ADVANCE D300A (Ratio 5.05 : 1) |
| Propeller | : | 2 x TNT, 4 Blade, Right rotation, Manganese Bronze - Cu 1 |
| Dia. 1,400 mm, Pitch 1,250 mm | ||
| Dia. sterntube 5”, Tail-shaft Material SS304L | ||
| General Set | : | 2 x 33 kVA/ 26.4 kW YANMAR Marine YTG40TLV-OM @ 1,500 rpm |
| Engine: YANMAR Model 4TNV98-GGEA, 34.1 kW, 1,500 rpm | ||
| Alternator: TAIYO Model LX-G30DL, 37.5 kVA, 50 Hz, 1,500 rpm | ||
| Muffler | : | 2 x HPW152 Dia. 6” (for Main Engine) |
| 2 x NLP75HD Dia. 3” (for General Set) | ||
| Blower | : | 2 x Axial fan, Motor VEMA Y2-90S-2; 1.5 kW, 2 HP, 2890 rpm |
| Oil Water Separator | : | 1 x Hong Yi Type CFY-0.25Y, Cap. 0.25 m3/h, 380 V, single drum |
| G.S. / Fire Pump | : | 1 x EBARA 80x65 FSG, Centrifugal Pump |
| Motor: BREMEN 10HP-2P-3Ph | ||
| Bilge Pump | : | 1 x EBARA 65x50 FSH, Centrifugal Pump |
| Motor: BREMEN 5.5HP-4P-3Ph | ||
| Daily Fuel Oil Pump | : | 1 x CROCODILE GC 25, Gear pump |
| Motor: BARTEX 1HP-4P-3PH; 0,75 kW | ||
| Deck Euipment | ||
| Anchor | : | 2 x 570 kg Stockless Hall Type RRT |
| Anchor Chain | : | 7/8”,22 mm, 305 kg (5 right, 4 left) |
| Winch | : | 2 sets for anchor & ramp door |
| Motor hydraulic, Gypsi 7/8; Gram wire ¾” x 100 | ||
| Powerpack | : | 1 x 380 VAC, 15 HP Model 2 TMHSG Single |
| Safety Equipment | ||
| Lifebuoy | : | 8 units |
| Liferaft | : | 12 units @25 person |
| Life Jacket | : | 156 unit |
| Bell Alarm | : |
8 units 6” (150 mm) 24 VDC/FWR |
| Smoke Detector | : | 6 units DC 24V Type Photoelectric, Model HS-WT30L |
| Heat Detector | : | 3 units Model HC-306A |
| Red Hand Flare | : | 2 units |
| Parachute Signal | : | 2 units |
| First Aid Kit | : | 1 set |
| Fire Extinguisher Equipment | ||
| Fire Extinguisher | : | 14 tubesType CO2, Dry powder, Foam |
| Fire Hydrant Valve | : | 2 sets |
| Fire Hydrant Box | : | 2 sets, Hose 2” x 30 meter |
| 1 set, Hose 2” x 20 meter | ||
| Fireman's Axe | : | 1 unit |
| Fireman Outfit | : | 1 set |
| Fire Blanket | : | 1 unit |
| Navigation Equipment | ||
| Compass | : | 1 unit Magnetic Compass |
| Radar | : | 1 unit FURUNO 1715 |
| Binocular | : | 1 pc |
| Clear View Screen | : | 1 pc 24 volt, 10" |
| Search Light | : | 1 pc 1000 watt |
| Clinometers | : | 1 pc |
| GPS | : | 1 unit FURUNO GP-32 |
| Echo Sounder | : | 1 unit FURUNO FCV-688 |
| Signal Flag | : | 1 set |
| National Flag | : | 1 pc |
| Communication Equipment | ||
| Radio | : | 1 unit Radio VHF + 3 sets Two?way VHF Radio Telephone |
| 1 unit Radio SSB | ||
| Accommodation |
|
|
| Air Condition | : | 7 units ¾ PK (1 in the cafeteria, 6 in bedroom) |
| 5 units 1 PK (1 in the galley, 4 in passenger deck) | ||
| 3 units 1½ PK (1 in the galley, 2 in the bridge) | ||
| Television | : | 3 units (1 in mess room, 2 in passenger deck) |
| Bed Set | : | 18 sets |
| Refrigerator & Freezer | : | 1 unit |
| Clock | : | 1 pc |
| Washing Machine | : | 1 unit |
| Kitchenette | : | 1 unit gas stove + kitchen sink |
| Toilet | : | 6 rooms |
| Plate Thickness | ||
| Keel | : | 12 mm |
| Bottom | : | 10 mm |
| Double Bottom | : | 8 mm |
| Hull | : | 10 mm |
| Main Deck | : | 8 mm |
| Passenger Deck | : | 8 mm |
| Navigation Deck | : | 8 mm |
| Frame | : | 8 mm |
| Tank Bulkhead | : | 8 mm |
| Bulkhead | : | 6 mm |
| Deck Partition | : | 6 mm |
