Landing Craft Tank 45M11

Landing Craft Tank 45M11 -  Ratson Ship Building

More Pictures

CATEGORY

USED LANDING CRAFT TANK

Dimensions
45.00 x 09.00 x 02.25 meters

Machinery
2 x 405 HP Yanmar 6HA2M-DTE

Build
2011

Status
Ready for Inspection

Description

Download Technical Drawing
 Download Drawing 1

Inquire Product

SPECIFICATIONS

Vessel Code : LCT-45M11
Class : BKI
Flag / Built : Indonesia / 2011
Length Over All : 45.00 meters
Breadth (moulded) : 9.00 meters
Design Draft (max.) : 2.25 meters
GRT : 367 Tones
NRT : 111 Tones
Displacement : 778.5 Tones
Light Weight : 425.7 Tones
Dead Weight : 352.8 Tones
Cargo on Deck : 300 Tones

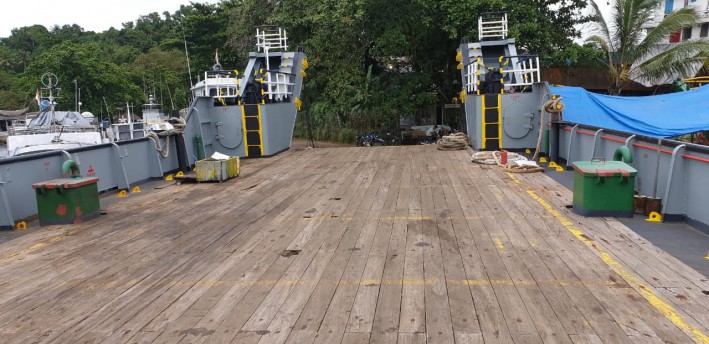

Clear Deck Area : 8 x 31 meters
Deck Strength : 5.3 T/ m2
Fuel Oil Tank Capacity : 30 m3
Fresh Water Capacity : 35 m3
Service Speed : 6 – 7 Knots
Max. Speed : 8 Knots
Machinery
Main Engine : 2 x 405 HP YANMAR Marine 6HA2M-DTE @ 1,950 rpm
Gear Box

: 2 x FADA D300A

Auxiliary Engine : 2 x 70 HP YANMAR 6TY120L
Emergency Generator : 1 x 15.5 kVA YANMAR TF155R-DI
Type of Fuel : Marine Diesel Oil
Propeller : Twin Screw (FPP)
Oil Water Separator : 1 x YC.Y7124 1,400 rpm
GS Pump : EBARA
Fuel Oil Pump : KS-25
Fresh Water Pump : PANASONIC
Deck Equipment
Steering Gear : Hydraulic & Manual
Anchor Windlass : 2 x WPA 155

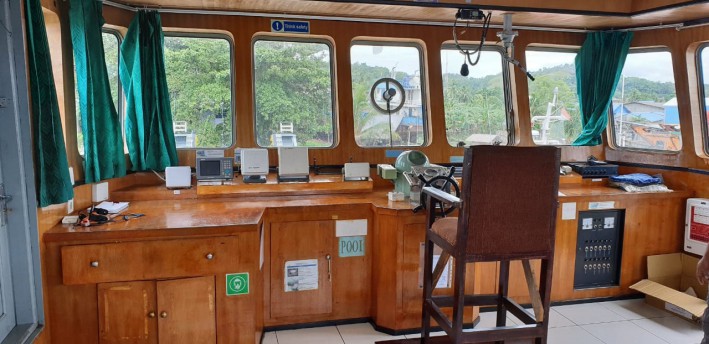

Navigation & Communication Equipment
Magnetic Compass : DAIKO
GPS : FURUNO GP-32
: GARMIN MAP2108
Radar : FURUNO RDP1715
Echo Sounder : 1 unit
Navtex : SAMYUNG SNX-300
Radio SSB : ICOM IC-M710
Radio VHF : ICOM IC-M304
AIS : ICOM MA-500TR
Satellite Phone : BYRU
Rudder Angle : PALMARINE
Wind Indicator : CLIPPER
Safety Equipment

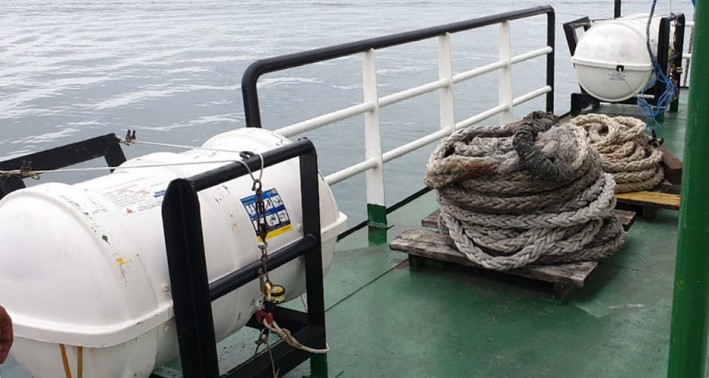

Life Raft : 2 x Cap. 10 persons
Life Jacket : 15 pcs
Search Light : 1 x 1,000 Watt
EPIRB : Model SEP-406
SART : 2 x SAMYUNG SAR-9
Man Over Board : 2 pcs
Pyrotechnics : SOLAS
Fire Fighting Equipment
Fire-man Outfit : 1 sets
EEBD : 1 sets (Emergency Escape Breathing Device)
Breathing Apparatus : 2 pcs
Fire Blanket : 1 pcs (in galley)
Fixed CO2 System : 2 x 45 kg
Sea Fifi Monitoring : 1 set
Accommodation
Bed : 9 beds (full AC)
Air Conditioner : 7 units
Freezer : 1 unit
Refrigerator : 2 units
Washing Machine : 1 unit
Shower Room : 2 rooms
Mess Room : 1 room
