Tug Boat 23M06

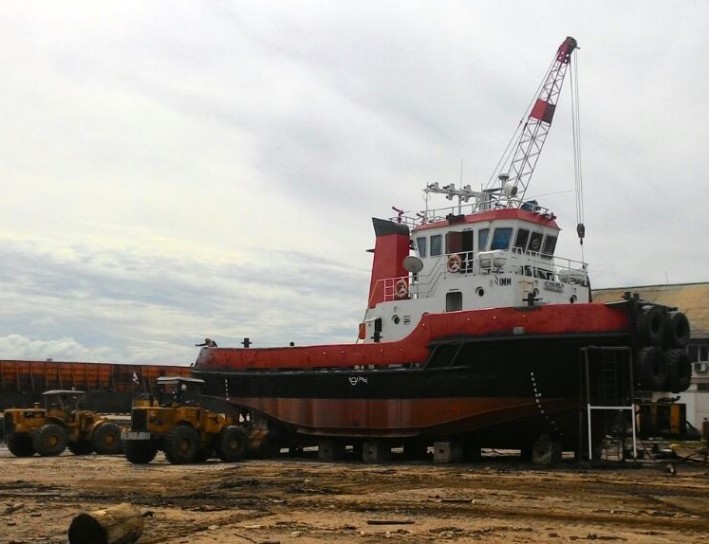

Tug Boat 23M06 -  Ratson Ship Building

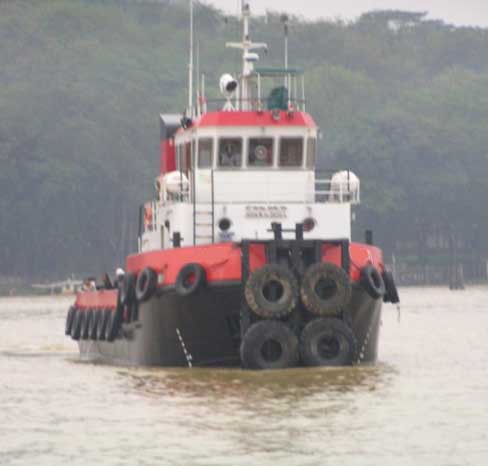

More Pictures

CATEGORY

USED TUG BOAT

Dimensions
23.15 x 7.33 x 3.05 meters

Machinery
2 x 600 PS MITSUBISHI S6A3-MPTK (year 2014) @ 1,910 rpm

Build
2006

Status

Description

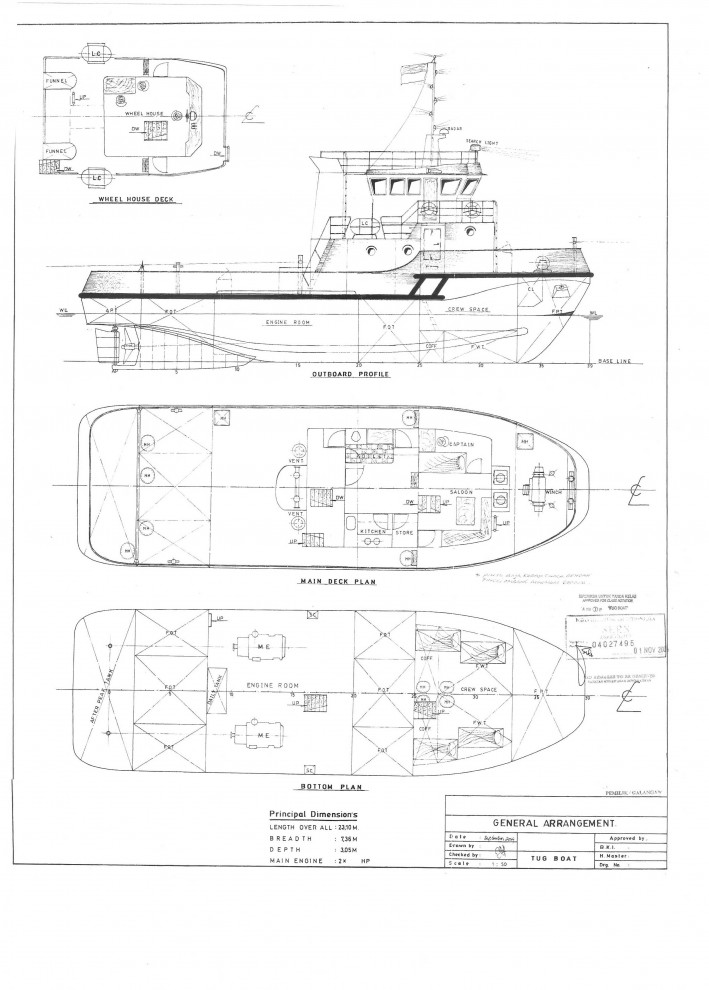

Download Technical Drawing
 Download Drawing 1

Inquire Product

SPECIFICATIONS

Vessel Code

: TB-23M06

Vessel Type

: Tug Boat / Push Tug Boat

Class

: BKI

Flag / Built

: Indonesia / 2006

Material

: Steel

LOA

: 23.15 meters

Breath

: 07.33 meters

Depth

: 03.05 meters

Loaded Draft

: 02.40 meters

Free Deck Space

: 10.00 x 6.00 meters

Tonnage

: 144 GT / 44 NT

Fuel Oil Tank Cap

: 55 tons

Fresh Water Tank Cap

: 42 tons

Accommodation

: 10 crews (2 x 1-man cabins, 1 x 8-men cabins)



Machinery


Main Engine

: 2 x 600 PS Mitsubishi S6A3-MPTK (year 2014) @ 1,910 rpm

Auxiliary Engine

: 1 x 40 kW Mitsubishi Model 4D32 / motor STC-40, 80 VAC 3 phase, 50 Hz


: 1 x 20 kW YANMAR Model TS230R


: 380 VAC 3 phase, 50 Hz

Propulsion

: Fixed Pitch Propellers

Steering System

: Electro – Hydraulic Steering System, single station

Towing Hook

: Make GL Model 25 T.H, capacity 25 tons

G.S. Pump

: 2 x pumps, capacity 2 x 5 m3/hour

OWS

: 1 x Model CYF, capacity 0.25 m3/hour



Fire Fighting Equipment


External

: 1 x Fire fighting pump


: 2 x Fire monitors with variable nozzles


: 2 x Hydrants and Hoses

Internal

: 2 x Fixed CO2 System @ 25 kg for engine room


: Portable fire extinguisher – dry powder


: Smoke / Fire detector alarm signal sysem


: Installed emergency shut down system



Communication
Radio SSB : 1 unit Radio SSB
Radio VHF : 1 unit Radio VHF
Navigation
Echosounder : 1unit echosounder
Radar : 1 unit Radar
Satelite : 1 unit GPS
Compass : 1 unit magnetic compass
Search Light : 1 unit search light 1000 watt
Flood Light : 1 unit Halogen light
Safety
Smoke Signals : 1 unit Smoke signal
Parachute Signals : 1 set parachute signal
Hand Flares : 1 unit hand flares
Life Raft : 2 x inflatable life raft @ 10 persons
Other
Winch : 1 Set electric winch with 2 set stockless anchor c/w chains
Elecric Outlet : Capacity 10 KVA / 380 VAC for outside connection
