Landing Craft Tank 31 Meters | Ratson Landing Craft Tank Ship Building

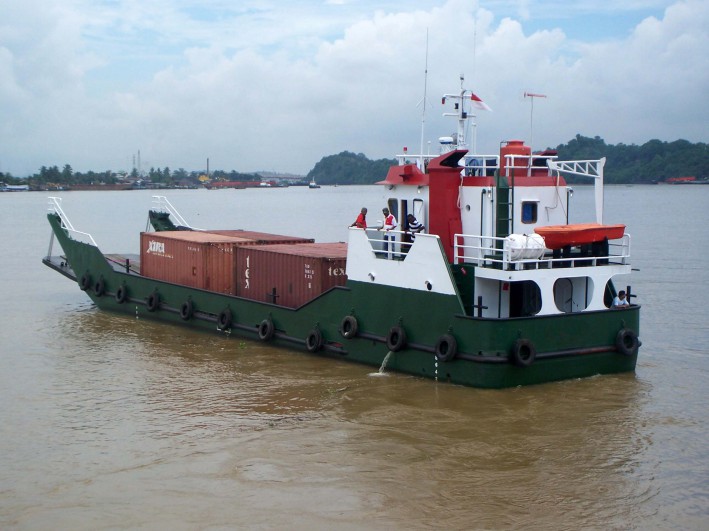

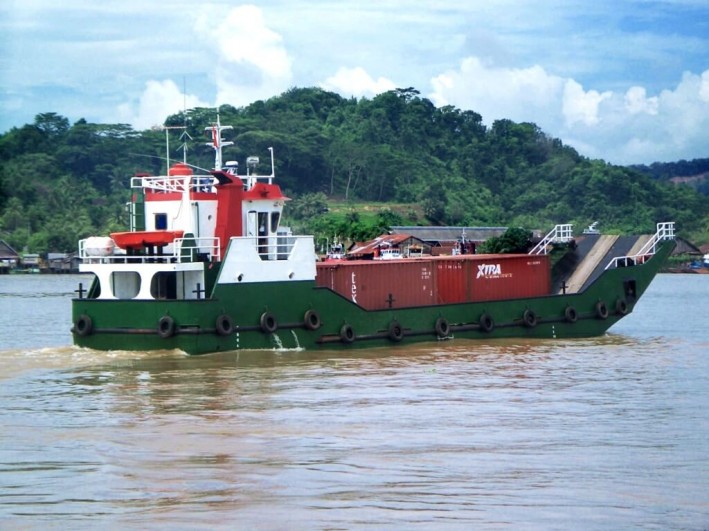

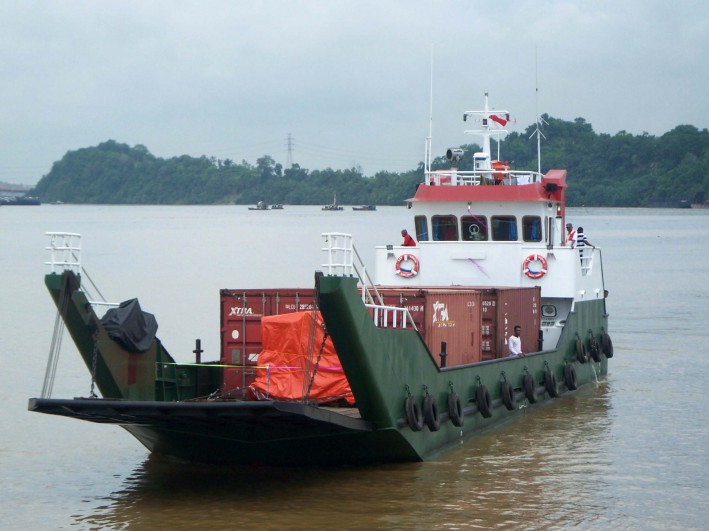

Landing Craft Tank 31 Meters

Landing Craft Tank 31 Meters -  Ratson Ship Building

More Pictures

CATEGORY

LANDING CRAFT TANK

Dimensions
31.00 x 06.50 x 02.40

Machinery
Yanmar 2 X 250 HP

Build
New Build

Status
8 to 10 Months Lead Time

Description

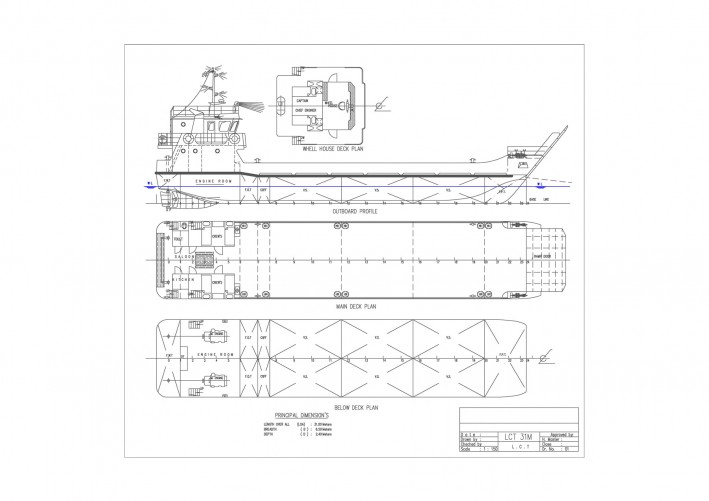

Download Technical Drawing
 Download Drawing 1

Inquire Product

SPECIFICATIONS

Code of Vessel

: LCT 31 M

Flag

: Indonesia

Type of Vessel

: Landing Craft Tank

Classification

: BKI

Build Year

: New Build

Length Over All

: 31.00 meters

Registered Breadth

: 06.50 meters

Registered Depth

: 02.40 meters

Draft Design Min / Max

: 01.50 – 2.20 meters

Design Speed

: 8 Knots

Fuel Oil Capacity

: ± 200 ton

Cargo Water Capacity

: ± 12 ton

Main Engine

: Yanmar 2 X 250 HP

Auxiliary

: 2 units Genset Yanmar TF 155 – 15 KW, TZH Hangzhou (new)



Gear Box

: 2 units Hangzhou HC 135 A Ratio 1 : 4 (New)

OWS

: 1 unit Water Separator 0,25 M3 (New)

Pump

: 1 unit Ebara 2”, Electro Motor 5,5 HP (New)

Anchor

: 1 unit @ 125 Kg

Anchor Winch

: 1 Electronic Unit (Sleng 50 Meter, Size 19 mm)

Ramp Door

: 1 Electronic Unit

Steer

: Manual Hydraulic

Rope

: 2 rolls @ 50 Meters



Safety


Landing Buoy

: 2 pieces Type XT5555 (720 X 440)

Light Landing Buoy

: 2 pieces Helmos Light GI-10

Life Graft

: 1 piece For 10 persons

Life Jacket

: 10 pieces Alumears Type

Fire Extinguisher

: 4 Tubes Gara Fire @ 6 kg

Smoke Signal

: 1 piece



Parachute Signal

: 3 pieces

Red and Flare

: 3 pieces

Bell

: 1 piece

Siren

: 1 piece

Fire Hose

: 1 set Size 1½” x 20 meter

Fire Nozzle

: 1 piece Size 1½”

Signal Flag

: 1 set



Navigation Equipment


Magnetic Compass

: 1 piece Daiko T-150, 6’

Binoculars

: 1 piece Binoculars 10 x 70 ZCF

Satellite

: 1 piece Furuno GPS 32

Wind Shield/Glass Fog

: 1 piece 24 Volt, 10” Daiko

Clinometers

: 1 piece Type Eiwa

Search Light

: 1 piece 1000 Watt



Communication


Radio SSB

: 1 unit ICOM 718

Radio VHF

: 1 unit ICOM M-45



Other


Air Conditioner

: 1 unit ½ PK

Deck

: Covered with Wood Frame 4 cm

Television

: 1 unit 14”

Beds

: 9 Beds + Pillow + Bed Sheet

Refrigerator

: 1 Fridge with 2 Doors

Kitchenette

: 1 Gas Stove Hitachi + 2 Small Tubes LPG

Plate of Ship

Keel

: 10 mm

Bottom

: 8 mm

Hull : 8 mm
Deck : 6 mm
Frame : 6 mm
