Landing Craft Tank ABD

Landing Craft Tank ABD -  Ratson Ship Building

More Pictures

CATEGORY

USED LANDING CRAFT TANK

Dimensions
54.46 x 18.00 x 04.50 meters

Machinery
2 x 640 HP, 477 kW Cummins KTA 190M3, @1,800 rpm

Build
2010

Status
Ready for inspection

Description

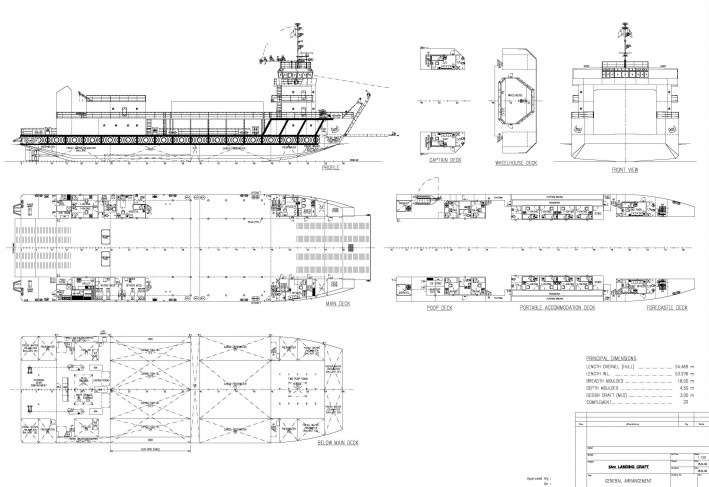

Download Technical Drawing
 Download Drawing 1

Inquire Product

SPECIFICATIONS

Vessel Code : LCT ABD
Type : Landing Craft Tank
Class : ABS
Port of Registry/ Flag : Singapore/ Singapore
Built : 2010
Length : 54.46 meters
Breadth Moulded : 18.00 meters
Depth Moulded : 04.50 meters
Draft Max : 03.00 meters
GT/NT : 1,369 tons/ 414 tons
Tonnage : 1,552.15 tons
Deck Area : 480 cbm
Speed : 10 knots
Accomodation : 20 persons
Ship Fuel Oil Tank Cap. : 73 tons
Cargo Fuel Oil Tank Cap. : 700 tons
Ship Fresh Water Tank Cap. : 156 tons
Cargo Fresh Water Tank Cap. : 915 tons
Sea Water Ballast : 220 tons
Anchor : 3 x 1,920 kg at bow (1 for spare)
Windlass/ Ramp : 2 x Electric Hydraulic
Winches at Bow : 2 x Electric Hydraulic
Mooring Winches at Atern : 2 x Electric Driven
Machinery
Main Engine : 2 x 640 HP, 477 kW Cummins KTA 190M3, @1,800 rpm
Gear Box : TWIN DISC MG-5170DC, Ratio 5.03:1
Propeller : 2 Fixed Pitch, 4 Blades, Manganeze Broze, dia 1.52 m
Main Generator : 3 x Cummins 6BTA5.9-GM100
Fuel Consumption : Max 8,400 L/day (at 12 knots)
: 650 L/day (Standby)


Navigation
Radar : Furuno FR-2177
Echo Sounder : Furuno FE-700
Speed Log : Furuno DS-80
GPS : Furuno GP-150
Gyro Compass : Anschutz STD 22
Magnetic Compass : Daiko Deiki SR-165
Auto Pilot : Anschutz NP60
VHF : 2 units Furuno FM-8800 S
SSB : 2 units Furuno Felcom-15
